745-3257 | WAGO
PCB terminal, 7 pole, pitch 12.5 mm, AWG 28-12, 32 A, cage clamp, gray, 745-3257
Unit Price (€ / pc.)
5.5811 € *
Available: 0 pcs.
Leadtime: On Request **

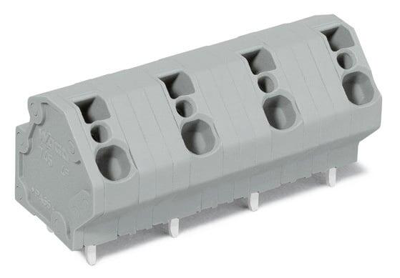

PCB terminal block, 745-3257, WAGO
PCB terminal block, 4 mm², Pin spacing 12.5 mm, 7-pole, CAGE CLAMP, 4 mm², gray.
Features
- Terminal strips with screwdriver-actuated CAGE CLAMP connection
- Mixed-color PCB terminal strips from factory
- Space-saving configuration of terminal strips when placed behind each other
- Double solder pins for high mechanical stability
- Integrated testing tap

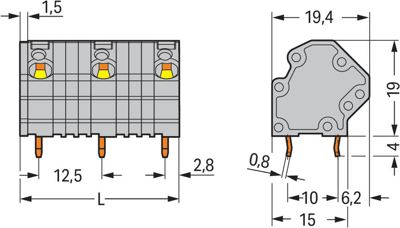

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 81.5 mm | |
| Farbe | grau | |
| Höhe | 23 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 32 A | |
| Polzahl | 7-polig | |
| Rastermaß | 12.5 mm | |
| Tiefe | 19.4 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
