PCB terminal, 10 pole, pitch 10 mm, AWG 24-10, 41 A, cage clamp, gray, 745-360
Unit Price (€ / pc.)
11.4359 € *
Available: 0 pcs.
Leadtime: On Request **

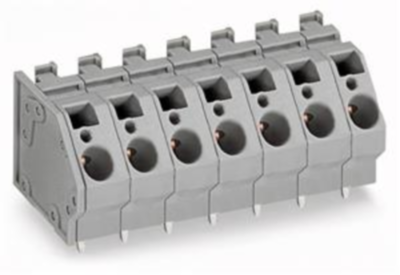

PCB terminal, 745-360, WAGO
PCB terminal block, 6 mm², pin spacing: 10 mm, 10-pole, CAGE CLAMP, 6.00 mm², gray.
Features
- PCB terminal strips with screwdriver-actuated CAGE CLAMP connection
- Common and distribute potentials via comb-style jumper bars
- Double solder pins for high mechanical stability
- Integrated testing tap

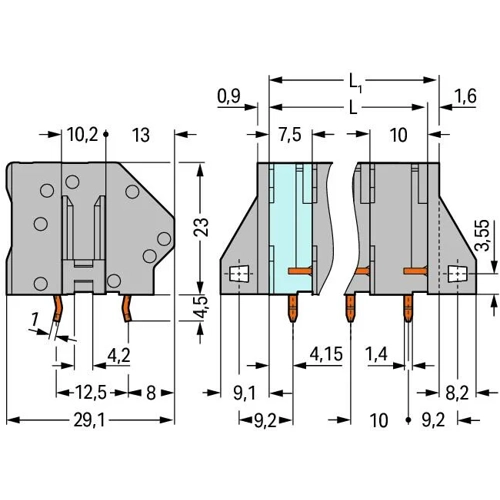

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 24-10 | |
| Width | 99.1 mm | |
| Colour | gray | |
| Height | 27.5 mm | |
| Contact distance | RM 10/12.5 | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 41 A | |
| Pin number | 10 pole | |
| Grid | 10 mm | |
| Depth | 29.1 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
