745-3810 | WAGO
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 32 A, cage clamp, pink, 745-3810
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7616 €
50 pcs.
0.7259 €
*incl. VAT plus shipping costs
**Subject to prior sale

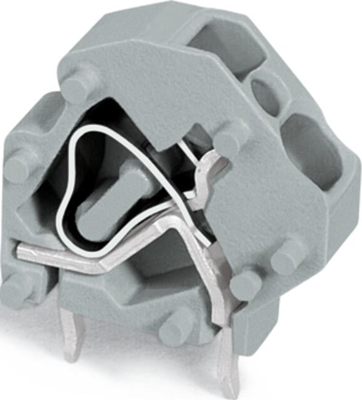

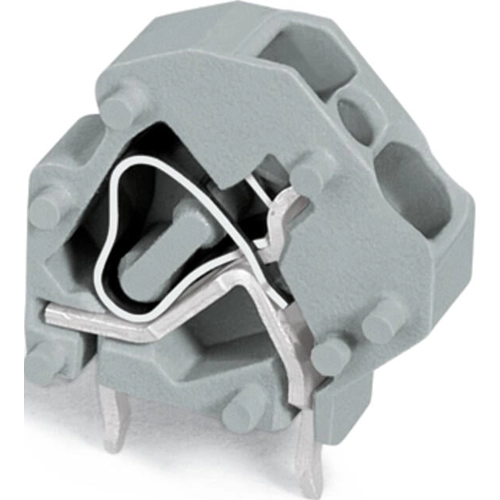

PCB terminal block, 745-3810, WAGO
Stackable PCB terminal block, 4 mm², Pin spacing 5 mm, 1-pole, CAGE CLAMP, 4.00 mm², pink.
Features
- Modular PCB terminal block with screwdriver-actuated CAGE CLAMP for custom PCB terminal strip assemblies
- Spacers for higher voltage applications
- Double solder pins for high mechanical stability
- Space-efficient configuration of terminal strips placed behind each other
- Integrated testing tap
Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 6.5 mm | |
| Farbe | pink | |
| Höhe | 23 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 32 A | |
| Polzahl | 1-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 19.4 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
