746-2303/000-005 | WAGO
PCB terminal, 3 pole, pitch 7.5 mm, AWG 20-8, 50 A, push-in cage clamp, red, 746-2303/000-005
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.6406 €
50 pcs.
5.3550 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal block, 746-2303/000-005, WAGO
2-conductor PCB terminal block, 10 mm², Pin spacing 7.5 mm, 3-pole, Push-in CAGE CLAMP, 10.00 mm², red.
Features
- Two-conductor terminal strips with screwdriver actuation and Push-in CAGE CLAMP connection
- Double entries for supply and power distribution
- Simple, reliable connection via clamping units featuring individual operating slots
- Simple, push-in termination of solid and ferruled conductors
- Marker slot for miniature WSB and WMB markers

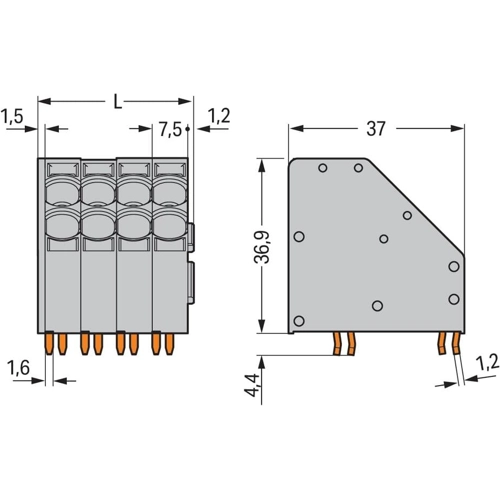

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 20-8 | |
| Breite | 25.2 mm | |
| Farbe | rot | |
| Höhe | 41.3 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennspannung | 1 kV | |
| Nennstrom | 50 A | |
| Polzahl | 3-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 37 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
