804-102/000-051 | WAGO

PCB terminal, 2 pole, pitch 5 mm, AWG 20-12, 24 A, push-in cage clamp, pink, 804-102/000-051

Order No.: 45P1732
EAN: 4055143378710
MPN:
804-102/000-051
Series: 804
WAGO

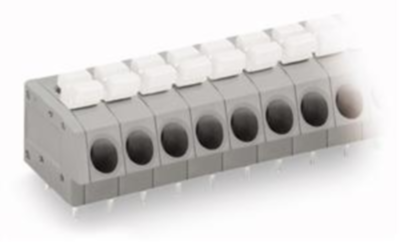

804-102/000-051 WAGO PCB Terminal Blocks Image 1
804-102/000-051 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.7973 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.80 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7973 €
10 pcs.
0.7140 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 804-102/000-051, WAGO

PCB terminal block, push-button, 2.5 mm², pin spacing: 5 mm, 2-pole, push-in CAGE CLAMP, 2.50 mm², pink.

Features

  • PCB terminal strips with push-buttons and Push-in CAGE CLAMP connection
  • Push-in termination of solid and ferruled, fine-stranded conductors
  • Terminal strips with spacers to increase pin spacing:
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 20-12
Width 11.5 mm
Colour pink
Height 18.1 mm
Cable cross-section 0.25-2.5 mm²
Rated voltage 320 V
Rated current 24 A
Pin number 2 pole
Grid 5 mm
Depth 15 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
