804-108 | WAGO

PCB terminal, 8 pole, pitch 5 mm, AWG 20-12, 24 A, push-in cage clamp, gray, 804-108

Order No.: 09H3208
EAN: 4044918515122
MPN:
804-108
Series: 804
WAGO

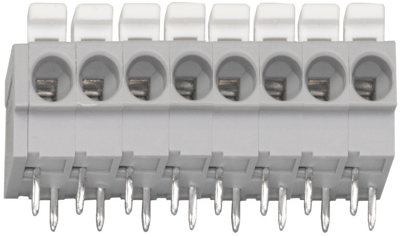

804-108 WAGO PCB Terminal Blocks Image 1

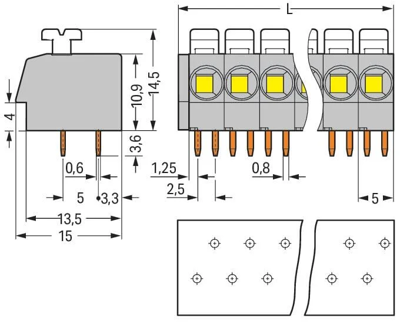

804-108 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
2.6299 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.63 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6299 €
10 pcs.
2.3800 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal strip, Type Wago

For PCB mounting, terminal block with 2 staggered solder pins/pole, cage-clamp-S terminals for direct insertion of solid and flexible conductors with crimped on wire end ferrule, wired can be inserted without wire end ferrule by means of pusher, for angled wiring; Color: gray. Conductor cross-sections: 0.5 to 2.5 mm². Grid: 5.0 mm. Rated voltage to EN (degree of soiling): 250 V (3) or 500 V (2). Rated current: 16 A. Certifications: ENEC, UL.

Type: 804–108, 8–pole

Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 20-12
Width 41.5 mm
Colour gray
Height 18.1 mm
Contact distance RM 5/5.08
Cable cross-section 0.25-2.5 mm²
Rated voltage 320 V
Rated current 24 A
Pin number 8 pole
Grid 5 mm
Depth 15 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
