804-304 | WAGO

PCB terminal, 4 pole, pitch 7.5 mm, AWG 20-12, 24 A, push-in cage clamp, gray, 804-304

Order No.: 43P2460
EAN: 4044918515412
MPN:
804-304
Series: 804

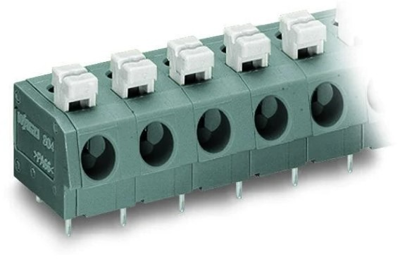

804-304 WAGO PCB Terminal Blocks Image 1

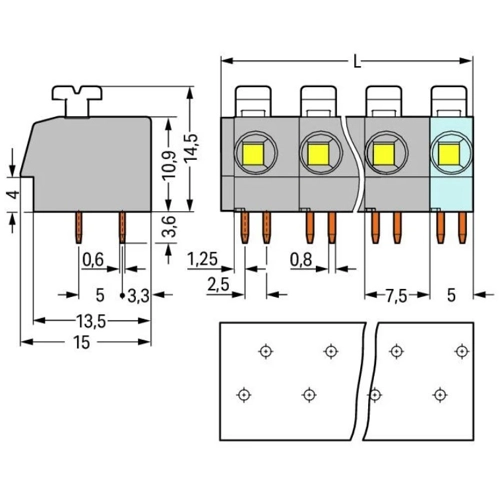

804-304 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal, 804-304, WAGO

PCB terminal block, push-button, 2.5 mm², pin spacing: 7.5 mm, 4-pole, push-in cage clamp, 2.50 mm², gray.

Features

  • PCB terminal strips with push-buttons and push-in cage clamp connection
  • Push-in termination of solid and ferruled, fine-stranded conductors
  • Terminal strips with spacers to increase pin spacing:
  • A large conductor entry accommodates conductors with a cross-section up to 12 AWG with an insulation diameter up to 4.2 mm
Technical specifications
Pin number 4-polig
Grid 7.5 mm
Cable cross-section 0,25-2,5 mm²
AWG cross-section AWG 20-12
Contact distance RM 7,5/5
Rated current 24 A
Rated voltage 320 V
Width 29 mm
Height 18.1 mm
Depth 15 mm
Connection Push-in Käfigklemme
Colour grau
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
