805-105 | WAGO
PCB terminal, 5 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, gray, 805-105
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 805-105, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 3.5 mm, 5-pole, push-in cage clamp, with test port, 1.50 mm², gray.
Features
- PCB terminal strips with push-buttons and push-in cage clamp connection
- Push-in termination of solid and ferruled conductors
- Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
- Convenient, tool-free operation

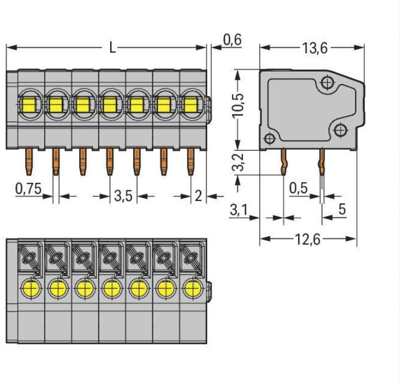

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 19 mm | |
| Farbe | grau | |
| Höhe | 13.7 mm | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 5-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 13.6 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
