805-320 | WAGO
PCB terminal, 20 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, gray, 805-320
Unit Price (€ / pc.)
5.1646 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1646 €
10 pcs.
4.6529 €
*incl. VAT plus shipping costs
**Subject to prior sale

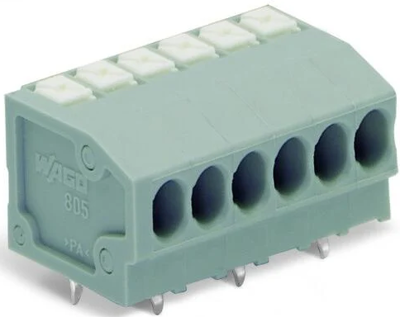

PCB terminal, 805-320, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 3.5 mm, 20-pole, push-in CAGE CLAMP, 1.50 mm², gray.
Features
- PCB terminal strips with push-buttons and Push-in CAGE CLAMP connection
- Push-in termination of solid and ferruled, fine-stranded conductors
- Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
- Convenient, tool-free operation

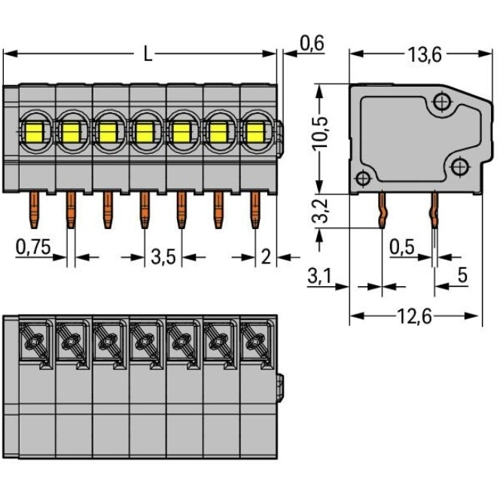

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-16 | |
| Width | 71.5 mm | |
| Colour | gray | |
| Height | 13.7 mm | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 20 pole | |
| Grid | 3.5 mm | |
| Depth | 13.6 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
