805-373 | WAGO

PCB terminal, 23 pole, pitch 3.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, gray, 805-373

Order No.: 45P1849
EAN: 4055143388207
MPN:
805-373
Series: 805
WAGO

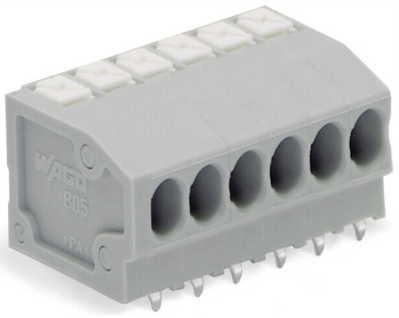

805-373 WAGO PCB Terminal Blocks Image 1

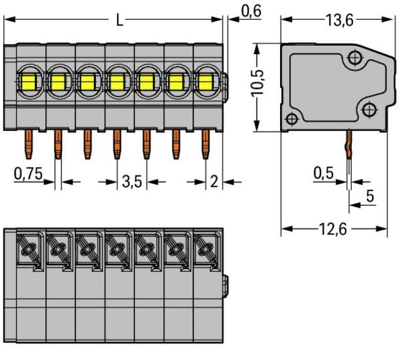

805-373 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
5.7477 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.75 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7477 €
10 pcs.
5.1765 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal block, 805-373, Wago

PCB terminal; pusher; 1.5 mm², grid dimension 3.5 mm, 23-pole, push-in CAGE CLAMP, 1.50 mm², gray

Features

  • Terminal strips with push-in CAGE CLAMP connection and handle actuation
  • Fine-stranded conductors with ferrules and solid conductors directly pluggable
  • Flush pushers with low operating forces for convenient connection and disconnection of fine-stranded conductors
  • No special tool necessary
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 24-16
Width 82 mm
Colour gray
Height 13.7 mm
Cable cross-section 0.2-1.5 mm²
Rated voltage 160 V
Rated current 17.5 A
Pin number 23 pole
Grid 3.5 mm
Depth 13.6 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
