855-1005/2500-1001 | WAGO

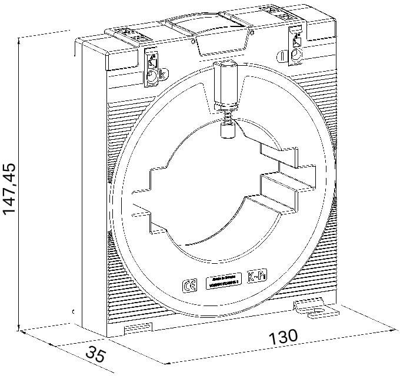

Plug-in current transformer, 2500 A, (W x H x D) 130 x 147.45 x 52 mm, 855-1005/2500-1001
Unit Price (€ / pc.)
130.90 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

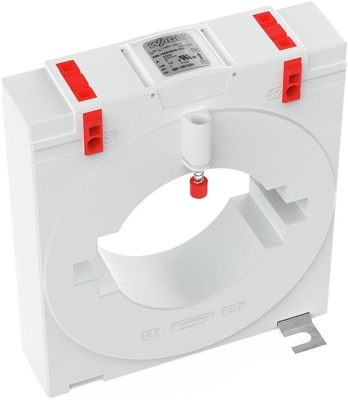

Plug-in current transformer, 855-1005/2500-1001, WAGO
This plug-in current transformer is inductive, single-conductor current transformer. Due to the measurement principle used, this current transformer is exclusively designed for AC network applications.
Features
- Screwless CAGE CLAMP connection technology
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120 % the nominal primary current
- Low-voltage current transformer for operating voltages up to max. 1.2 kV
Technical specifications
| Ausführung | Aufsteckstromwandler | |
| Bemessungsstrom | 2500 A | |
| Breite | 130 mm | |
| Gewicht | 396 g | |
| Höhe | 147.45 mm | |
| Tiefe | 52 mm |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85043129 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
