855-405/750-509 | WAGO
Plug-in current transformer, 750 A, (W x H x D) 70 x 91.15 x 52 mm, 855-405/750-509
Unit Price (€ / pc.)
373.66 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

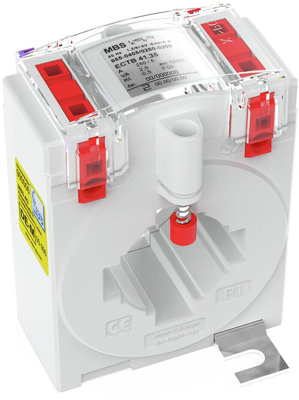

Plug-in current transformer, 855-405/750-509, WAGO
This plug-in current transformer is inductive, single-conductor current transformer. Due to the measurement principle used, this current transformer is exclusively designed for AC network applications.
Features
- Screwless CAGE CLAMP connection technology
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120 % the nominal primary current
- Low-voltage current transformer for operating voltages up to max. 1.2 kV

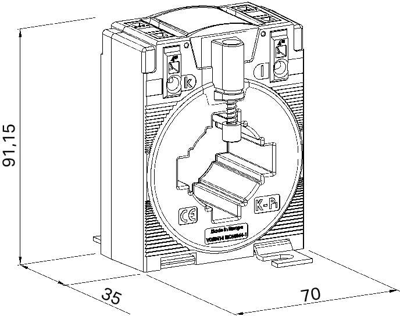

Technical specifications
| Version | Plug-in current transformer | |
| Rated current | 750 A | |
| Width | 70 mm | |
| Weight | 340 g | |
| Height | 91.15 mm | |
| Depth | 52 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85043129 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
