Current and voltage tap up, 855-501/150-000, WAGO

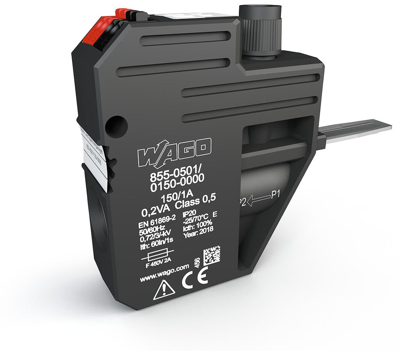

Current and Voltage Tap for 50 mm² high-current through terminal blocks provides the ideal basis for successful energy management, because current and voltage are required wherever electrical power is measured. A combination of current transformer and voltage tap, the current and voltage tap can be quickly and easily mounted into the jumper slot high-current through terminal block.

An integrated fuse reliably protects downstream energy meters. An integrated current transformer allows precise current measurement per EN 61869-2. The current output connectors are marked with S1 (black) and S2 (red). Both termination and removal of fine-stranded conductors is performed via push-buttons.

Features

• Power data can be directly tapped into the power supply
• Easy installation – simply insert the tap into the jumper slot of the 185 mm² (350 kcmil) high-current through terminal block
• Integrated current transformer
• Fuse-protected voltage path
