855-505/400-1001 | WAGO

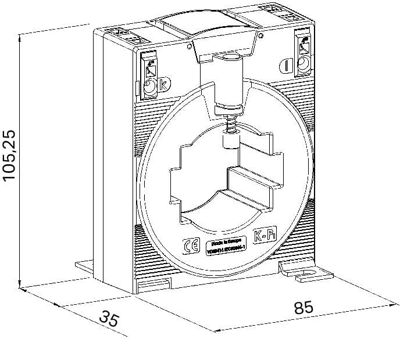

Plug-in current transformer, 400 A, (W x H x D) 85 x 105.25 x 52 mm, 855-505/400-1001
Unit Price (€ / pc.)
51.8007 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

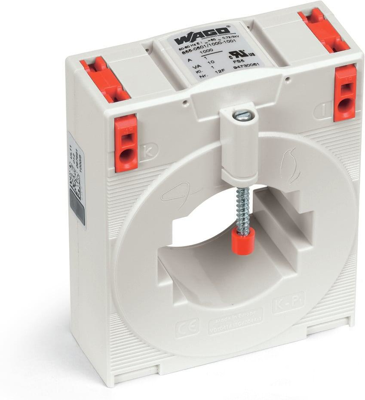

Plug-in current transformer, 855-505/400-1001, WAGO
This plug-in current transformer is inductive, single-conductor current transformer. Due to the measurement principle used, this current transformer is exclusively designed for AC network applications.
Features
- Screwless CAGE CLAMP connection technology
- Vibration- and shock-resistant
- High mechanical retention forces
- High current-carrying capacity
- Continuous overload of 120 % the nominal primary current
- Low-voltage current transformer for operating voltages up to max. 1.2 kV
Technical specifications
| Ausführung | Aufsteckstromwandler | |
| Bemessungsstrom | 400 A | |
| Breite | 85 mm | |
| Gewicht | 366 g | |
| Höhe | 105.25 mm | |
| Tiefe | 52 mm |
Download
Logistics
| Ursprungsland | HU |
| Zolltarifnummer | 85043129 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
