855-9450/2000-701 | WAGO
Rogowski coil, 1000 A, for cables 70 mm, (W x H x D) 33.7 x 18.9 x 56 mm, 855-9450/2000-701
Unit Price (€ / pc.)
231.0980 € *
Available: 0 pcs.
Leadtime: On Request **

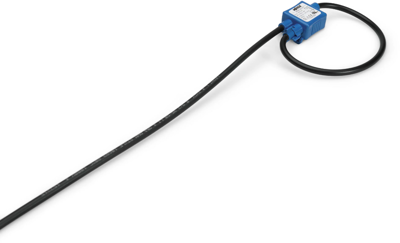

Rogowski coil, 855-9450/2000-701, Wago
The Rogowski coil is a closed-air coil with non-magnetic split core, placed around a conductor or a current bar.
The magnetic field produced by the AC current flowing through the conductor induces an output voltage in the coil.
This measurement procedure provides galvanic isolation between the primary circuit (power) and secondary circuit (measurement). Easy placement of the Rogowski coils allows existing systems to be retrofitted without time-consuming installation or process interruption.
Features
- Split-core style coil for easy installation
- Ø 125 mm coil aperture for non-contact measurement
- 1.5 m or 3 m output cable
- Insulated plastic case to UL 94-V0
Technical specifications
| Version | Rogowski coil | |
| Rated current | 1000 A | |
| Width | 33.7 mm | |
| Weight | 130 g | |
| Height | 18.9 mm | |
| Cable diameter | 70 mm | |
| Depth | 56 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
