771-9993/306-101 | WAGO

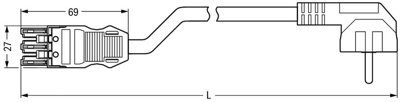

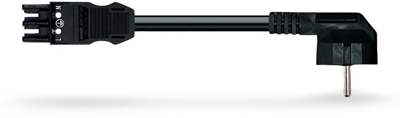

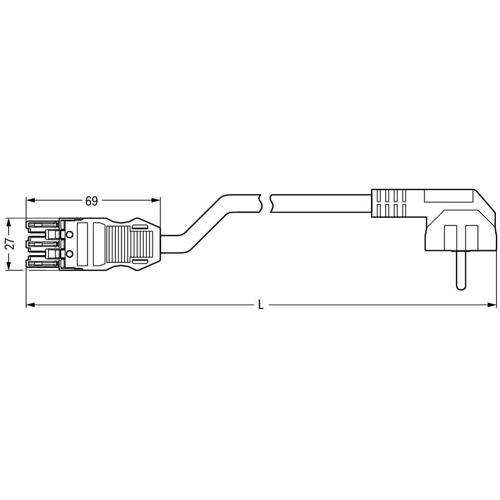

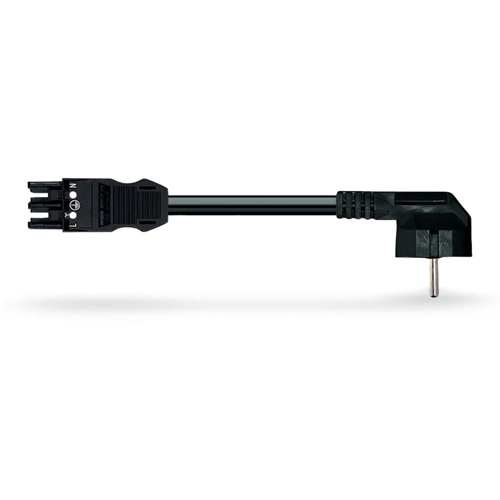

Device connection cable, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G1.5 mm², black, 1 m, 771-9993/306-101
Unit Price (€ / pc.)
7.7588 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Device connection line, 771-9993/306-101, WAGO
Cable assembly WINSTA MIDI with strain relief. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It allows fast, secure and, above all, error-free installation of components and cables. Now you can also reduce installation expenses without compromising safety and quality: with marking reduces the need for servicing and prevents unnecessary downtime.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With A coding for a great number of applications
- Convenient installation and commissioning
Technical specifications
| Anschluss (1) | Schuko-Stecker, abgewinkelt | |
| Anschluss (2) | Buchse, 3-polig, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | schwarz | |
| Kabel | H05VV-F3G1,5 mm² | |
| Kabellänge | 1 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennstrom | 16 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 61535 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
