771-9993/306-102 | WAGO

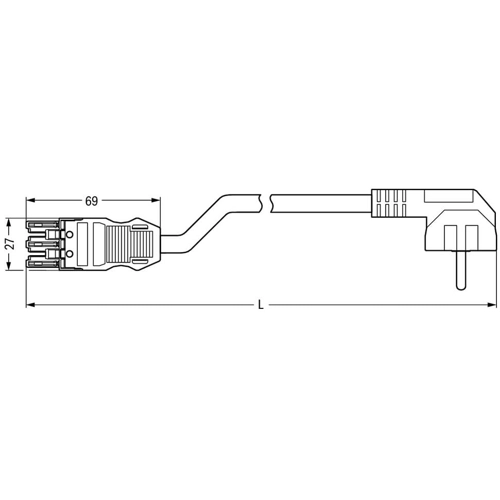

Device connection cable, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G1.5 mm², white, 1 m, 771-9993/306-102
Unit Price (€ / pc.)
7.7588 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Device connection line, 771-9993/306-102, WAGO
The WINSTA MIDI cable assembly allows assembly of solid and fine-stranded conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables.
Features
- Pluggable installation connector with protection against mismating
- With A coding for use in a large number of general mains applications
- Rapid, structured electrical installation
Technical specifications
| Anschluss (1) | Schuko-Stecker, abgewinkelt | |
| Anschluss (2) | Buchse, 3-polig, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | weiß | |
| Kabel | H05VV-F3G1,5 mm² | |
| Kabellänge | 1 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 1,5 mm² | |
| Nennstrom | 16 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 61535 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
