771-9993/306-202 | WAGO

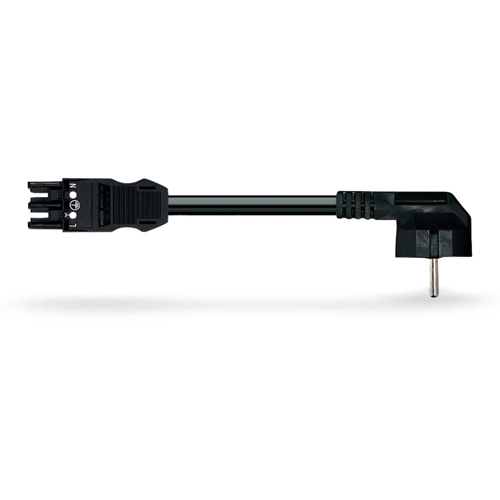

Device connection line, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G1.5 mm², white, 2 m, 771-9993/306-202
Device connection line, 771-9993/306-202, WAGO
WINSTA MIDI cable assembly for power and signal transmission. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it achieves error-free, time-saving installation and offers flexibility for meeting all installation requirements.
WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows fast, secure and, above all, error-free installation of components and cables. Now you can also lower installation expenses without compromising quality and safety: with marking eliminates the need for servicing and prevents unnecessary downtime.
Features
- Protection against mismating eliminates errors
- With A coding for a great number of applications
- Rapid, structured electrical installation
| Connection (1) | german schuko-style plug, angled | |
| Connection (2) | socket, 3 pole, straight | |
| Version | power cord | |
| Colour | white | |
| Cable type | H05VV-F3G1.5 mm² | |
| Cable length | 2 m | |
| Country code | Europe | |
| Cable cross-section | 1.5 mm² | |
| Rated current | 16 A | |
| Standard connection 1 | CEE (7) VII | |
| Standard connection 2 | IEC 61535 |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
