771-9993/306-301 | WAGO

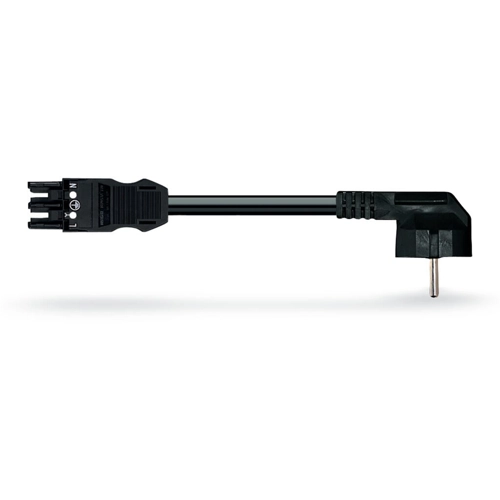

Device connection cable, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G1.5 mm², black, 3 m, 771-9993/306-301

Order No.: 45P5123
EAN: 4044918586535
MPN:
771-9993/306-301
Series: WINSTA MIDI
771-9993/306-301 WAGO Power Cords Image 1

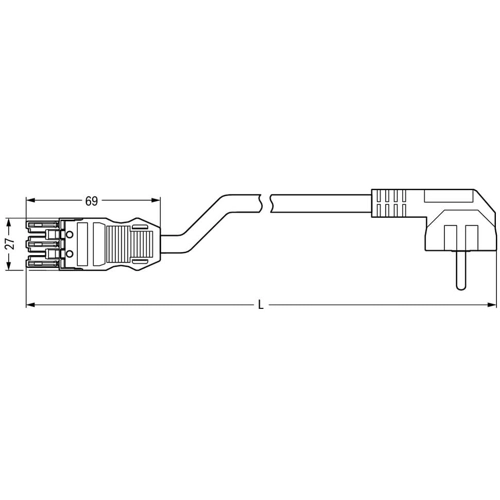

771-9993/306-301 WAGO Power Cords Image 2
Image may differ
Unit Price (€ / pc.)
10.0674 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
10.07 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.0674 €

Device connection line, 771-9993/306-301, WAGO

The WINSTA MIDI cable assembly 3-pole is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. Thanks to the included test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and expense.

WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures error-free installation of cables and components, quickly and reliably.

Features

  • Pluggable installation connector with protection against mismating
  • For automation controllers
  • With A coding for use in many general mains applications
  • Convenient installation and commissioning
Technical specifications
Anschluss (1) Schuko-Stecker, abgewinkelt
Anschluss (2) Buchse, 3-polig, gerade
Ausführung Geräteanschlussleitung
Farbe schwarz
Kabel H05VV-F3G1,5 mm²
Kabellänge 3 m
Landeskennung Europa
Leiterquerschnitt 1,5 mm²
Nennstrom 16 A
Norm Anschluss 1 CEE (7) VII
Norm Anschluss 2 IEC 61535
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
