771-9993/307-101 | WAGO

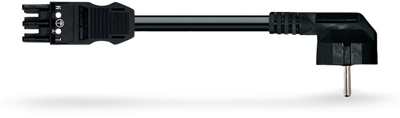

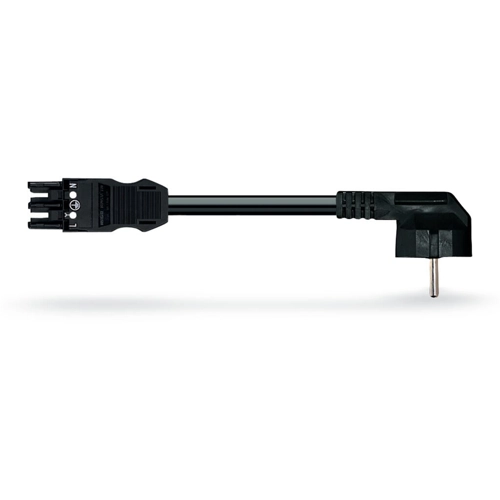

Device connection cable, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G2.5 mm², black, 1 m, 771-9993/307-101
Unit Price (€ / pc.)
9.5438 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Device connection line, 771-9993/307-101, WAGO
WINSTA MIDI cable assembly for power and signal transmission. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. This product has a current rating of 20 A - therefore it is also suitable for powerful loads.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Now you can also reduce installation expenses without compromising quality and safety: with fire class E eliminates the need for servicing and prevents unnecessary downtime.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- For any mains application
- Rapid, structured electrical installation

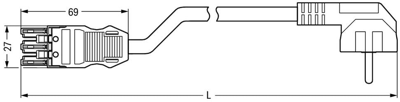

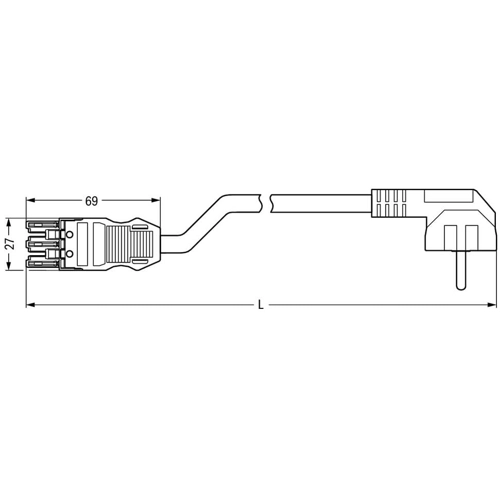

Technical specifications
| Anschluss (1) | Schuko-Stecker, abgewinkelt | |
| Anschluss (2) | Buchse, 3-polig, gerade | |
| Ausführung | Geräteanschlussleitung | |
| Farbe | schwarz | |
| Kabel | H05VV-F3G2,5 mm² | |
| Kabellänge | 1 m | |
| Landeskennung | Europa | |
| Leiterquerschnitt | 2,5 mm² | |
| Nennstrom | 20 A | |
| Norm Anschluss 1 | CEE (7) VII | |
| Norm Anschluss 2 | IEC 61535 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
