771-9993/307-201 | WAGO

Device connection cable, Europe, german schuko-style plug, angled on socket, 3 pole, straight, H05VV-F3G2.5 mm², black, 2 m, 771-9993/307-201

Order No.: 45P5126
EAN: 4050821260929
MPN:
771-9993/307-201
Series: WINSTA MIDI

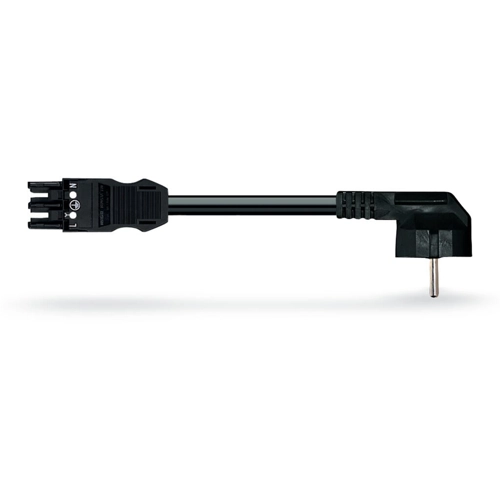

771-9993/307-201 WAGO Power Cords Image 1

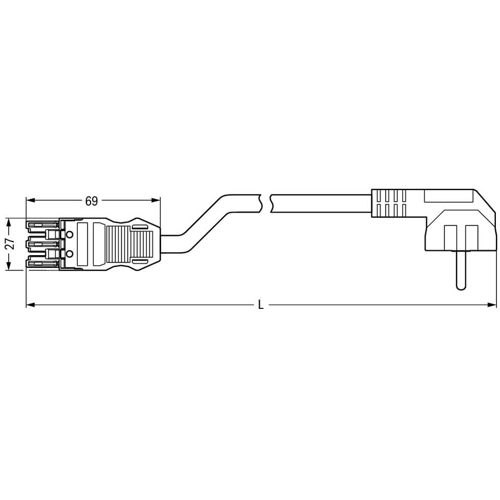

771-9993/307-201 WAGO Power Cords Image 2
Image may differ
Unit Price (€ / pc.)
11.7572 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
11.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.7572 €

Device connection line, 771-9993/307-201, WAGO

The WINSTA MIDI cable assembly A coding supports fast, reliable installation. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector can be used for a current load of up to 20 A.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Now you can also cut installation expenses without compromising safety and quality: with marking eliminates the need for servicing and prevents unnecessary downtime.

Features

  • Protection against mismating eliminates errors
  • For automation controllers
  • With A coding for use in a large number of general mains applications
  • Quick replacement of defective units during ongoing operation
Technical specifications
Anschluss (1) Schuko-Stecker, abgewinkelt
Anschluss (2) Buchse, 3-polig, gerade
Ausführung Geräteanschlussleitung
Farbe schwarz
Kabel H05VV-F3G2,5 mm²
Kabellänge 2 m
Landeskennung Europa
Leiterquerschnitt 2,5 mm²
Nennstrom 20 A
Norm Anschluss 1 CEE (7) VII
Norm Anschluss 2 IEC 61535
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
