771-9993/406-202 | WAGO
Device connection line, Europe, plug, 3 pole, straight on schuko socket, straight, H05VV-F3G1.5 mm², white, 2 m, 771-9993/406-202
Unit Price (€ / pc.)
14.3395 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

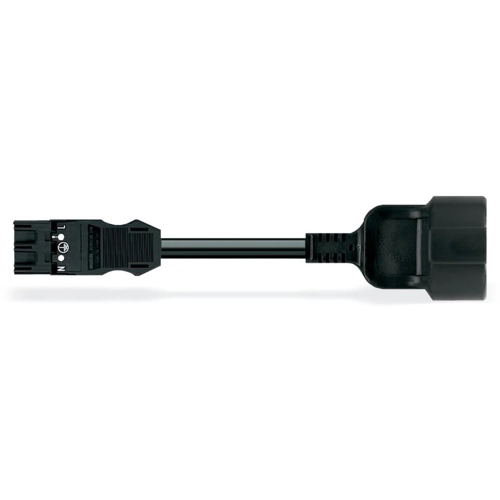

Device connection line, 771-9993/406-202, WAGO
Cable assembly WINSTA MIDI 3-pole. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Due to the built-in test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money. This product meets all the relevant safety requirements of fire class E; therefore it can be used in areas where fire safety is relevant.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With A coding for use in a large number of general mains applications
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | plug, 3 pole, straight | |
| Connection (2) | schuko socket, straight | |
| Version | power cord | |
| Colour | white | |
| Cable type | H05VV-F3G1.5 mm² | |
| Cable length | 2 m | |
| Country code | Europe | |
| Cable cross-section | 1.5 mm² | |
| Rated current | 16 A | |
| Standard connection 1 | IEC 61535 | |
| Standard connection 2 | CEE (7) III |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
