771-5001/110-000 | WAGO

Y cable, 0.6 m, plug/plug, 3-/3 pole straight to socket, 4 pole straight, 1.5 mm², 771-5001/110-000

Order No.: 45P6302
EAN: 4050821521556
MPN:
771-5001/110-000
Series: WINSTA MIDI

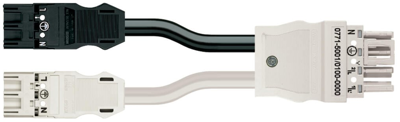

771-5001/110-000 WAGO Pre-assembled Connector Systems Image 1

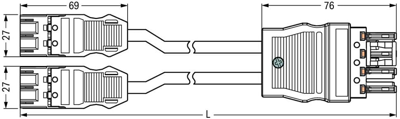

771-5001/110-000 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
23.3835 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
23.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
23.3835 €

Y-cable, 771-5001/110-000, WAGO

WINSTA MIDI Connecting line for power and signal transmission. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. With its Push-in Cage Clamp spring pressure connection technology, it achieves error-free, time-saving installation and offers flexibility and customization for meeting an enormous variety of installation requirements.

The Connecting line is provided with a MIDI plug, a MIDI plug and a MIDI socket. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Now you can also reduce installation expenses without compromising quality and safety: with protection type IP20 reduces the need for servicing and prevents unnecessary downtime.

Features

  • Pluggable installation connector with protection against mismating
  • Simple circuits
  • With A coding for a large number of uses
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Anschluss (1) Stecker/Stecker, 3-/3-polig
Anschluss (2) Buchse, 4-polig
Ausführung Y-Kabel
Bauform Anschluss 1 gerade
Bauform Anschluss 2 gerade
Kabellänge 0.6 m
Kodierung A
Leiterquerschnitt 1,5 mm²
Logistics
Ursprungsland DE
Zolltarifnummer 85444290
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
