771-5001/180-000 | WAGO

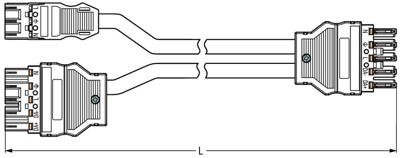

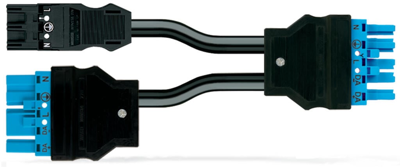

Y cable, 0.5 m, plug/plug, 3-/5 pole straight to socket, 5 pole straight, 1.5 mm², 2.5 mm², 771-5001/180-000
Y-cable, 771-5001/180-000, WAGO
WINSTA MIDI Connecting line for power and signal transmission. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. Thanks to the integrated test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and expense.
A MIDI plug, a MIDI plug and a MIDI socket are provided. WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows fast, secure and, above all, error-free installation of components and cables.
Features
- Protection against mismating eliminates errors
- Simple circuits
- For lighting management
- Convenient installation and commissioning
| Connection (1) | plug/plug, 3-/5 pole | |
| Connection (2) | socket, 5 pole | |
| Version | Y cable | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 0.5 m | |
| Coding | A | |
| Cable cross-section | 1.5 mm², 2.5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
