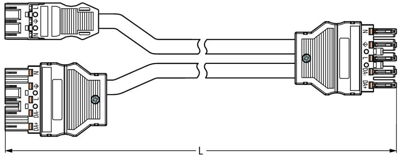

Y cable, 0.5 m, plug/plug, 3-/5 pole straight to socket, 5 pole straight, 1.5 mm², 2.5 mm², 771-5001/181-000
Y-cable, 771-5001/181-000, WAGO
The WINSTA MIDI Connecting line with protection against mismating supports fast, reliable installation. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. Thanks to the integrated test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and expense.

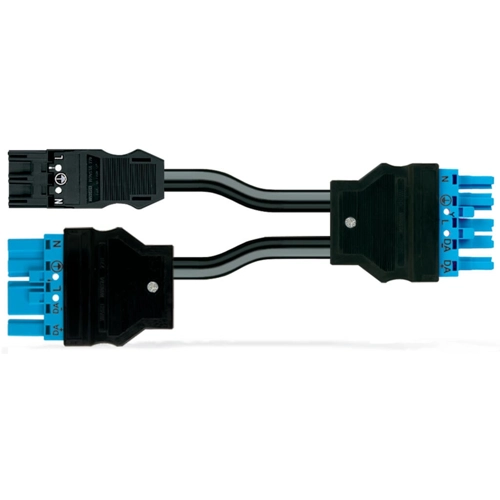

A MIDI plug, a MIDI plug and a MIDI socket are provided. WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With I coding for controlling light (DALI standard)
- Ready for immediate use
- Rapid, structured electrical installation
| Anschluss (1) | Stecker/Stecker, 3-/5-polig | |
| Anschluss (2) | Buchse, 5-polig | |
| Ausführung | Y-Kabel | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 0.5 m | |
| Kodierung | A | |
| Leiterquerschnitt | 1,5 mm², 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
