771-5001/201-000 | WAGO

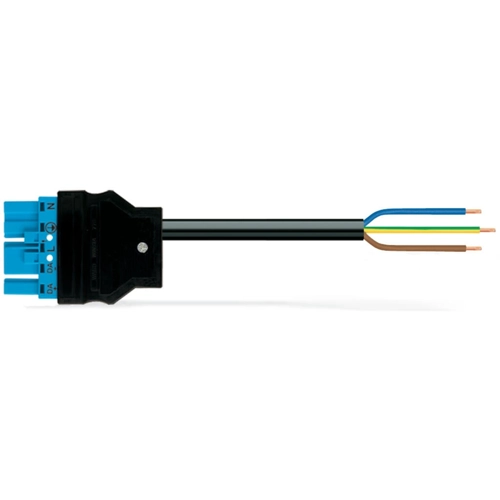

Connection line, 5 m, plug, 5 pole straight to open end, 1.5 mm², 771-5001/201-000
Connecting line, 771-5001/201-000, WAGO
The WINSTA MIDI Connecting line with protection type IP20 allows assembly of solid and fine-stranded conductors. The pluggable installation connector with spring pressure connection technology work entirely without screw connections. It allows flexible, error-free installation in a large number of applications. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.
The Connecting line is provided with a plug and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- For intelligent, easy lighting installation
- Ready to install and use immediately
- Convenient installation and commissioning
| Connection (1) | plug, 5 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 5 m | |
| Coding | I | |
| Cable cross-section | 1.5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
