771-5001/220-000 | WAGO

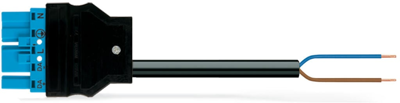

Connection line, 8 m, plug, 5 pole straight to open end, 1.5 mm², 771-5001/220-000

Order No.: 45P0338
EAN: 4055143810784
MPN:
771-5001/220-000
Series: 771
WAGO
771-5001/220-000 WAGO Pre-assembled Connector Systems Image 1
771-5001/220-000 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
38.6393 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
38.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
38.6393 €

Connecting line, 771-5001/220-000, WAGO

The WINSTA MIDI Connecting line I coding supports fast, reliable installation. This pluggable installation connector with spring pressure connection technology work completely without screw connections. It allows resource-efficient, error-free installation in a large number of possible uses. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20.

The This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too!.

Features

  • Pluggable installation connector with protection against mismating
  • For lighting management
  • Ready for immediate use
  • Quick replacement of defective units during ongoing operation
Technical specifications
Connection (1) plug, 5 pole
Connection (2) open end
Version connection line
Connection 1 design straight
Cable length 8 m
Coding I
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
