771-5001/222-000 | WAGO

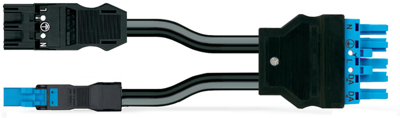

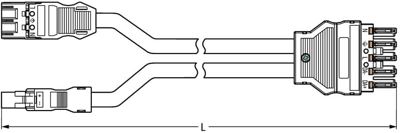

Y cable, 0.5 m, plug/plug, 3-/2 pole straight to socket, 5 pole straight, 1.5 mm², 2.5 mm², 771-5001/222-000
Y-cable, 771-5001/222-000, WAGO
The WINSTA MIDI Connecting line rated current 16 A provides the foundation for installation of fine-stranded and solid conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Through its Push-in Cage Clamp spring pressure connection technology, it achieves error-free, time-saving installation and offers flexibility for meeting all installation requirements.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Protection against mismating eliminates errors
- For automation controllers
- With A coding for a large number of uses
- Flexible installation to save space
- Quick replacement of defective units during ongoing operation
| Anschluss (1) | Stecker/Stecker, 3-/2-polig | |
| Anschluss (2) | Buchse, 5-polig | |
| Ausführung | Y-Kabel | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 0.5 m | |
| Kodierung | A | |
| Leiterquerschnitt | 1,5 mm², 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
