771-5001/296-000 | WAGO

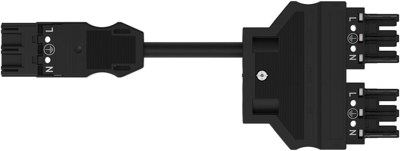

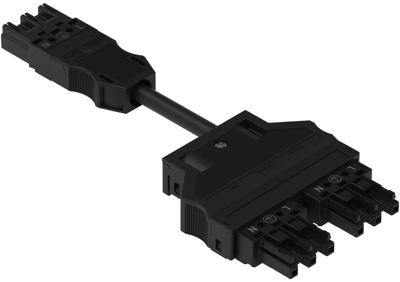

Y cable, 0.5 m, plug straight to Socket/Socket straight, 2.5 mm², 771-5001/296-000
Unit Price (€ / pc.)
26.2633 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Y-cable, 771-5001/296-000, WAGO
The WINSTA MIDI Connecting line. For greater protection in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This product has a current rating of 20 A - therefore it is suitable for robust loads. Due to the built-in test slot, connections can be checked even when they are plugged in. This saves time, labor, and money.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Effective protection against mismating
- For automation controllers
- With A coding for a great number of applications
- Quick replacement of defective units during ongoing operation
Technical specifications
| Connection (1) | plug | |
| Connection (2) | Socket/Socket | |
| Version | Y cable | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 0.5 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
