771-6993/007-302 | WAGO

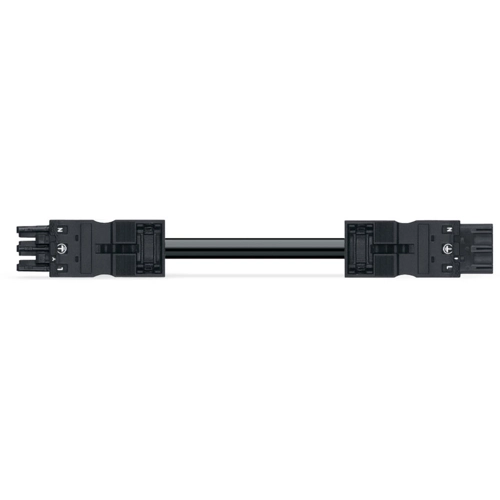

Connecting line, 3 m, socket, 3 pole straight to plug, 3 pole straight, 2.5 mm², 771-6993/007-302
Unit Price (€ / pc.)
17.1836 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-6993/007-302, WAGO
The WINSTA MIDI Connecting line A coding supports rapid, correct installation. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. This pluggable installation connector can be employed for a voltage load of up to 20 A. Therefore, it can also be used for high power loads. Due to the included test slot, connections can be checked even when they are plugged in. This saves time, labor, and money.
WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It offers error-free installation of cables and components, quickly and reliably.
Features
- Protection against mismating eliminates errors
- Simple circuits
- For any mains application
- Flexible installation to save space
- Fast, secure installation
Technical specifications
| Connection (1) | socket, 3 pole | |
| Connection (2) | plug, 3 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 3 m | |
| Coding | A | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
