771-8982/006-502 | WAGO

Connecting line, 5 m, socket, 2 pole straight to plug, 2 pole straight, 1.5 mm², 771-8982/006-502

Order No.: 45P5536
EAN: 4055143470018
MPN:
771-8982/006-502
Series: 771
WAGO

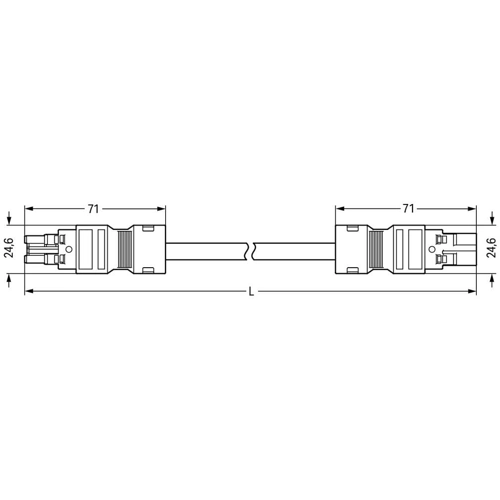

771-8982/006-502 WAGO Pre-assembled Connector Systems Image 1
771-8982/006-502 WAGO Pre-assembled Connector Systems Image 2
Image may differ
Unit Price (€ / pc.)
11.8286 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
11.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.8286 €

Connecting line, 771-8982/006-502, WAGO

The WINSTA MIDI Connecting line allows installation of solid and fine-stranded conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. The required safety requirements in connection with EU CPR are met by this product through fire class E.

The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.

Features

  • Effective protection against mismating
  • Simple circuits
  • With I coding for use in the automation of buildings (lighting control)
  • Rapid, structured electrical installation
Technical specifications
Connection (1) socket, 2 pole
Connection (2) plug, 2 pole
Version connecting line
Connection 1 design straight
Connection 2 design straight
Cable length 5 m
Coding I
Cable cross-section 1.5 mm²
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
