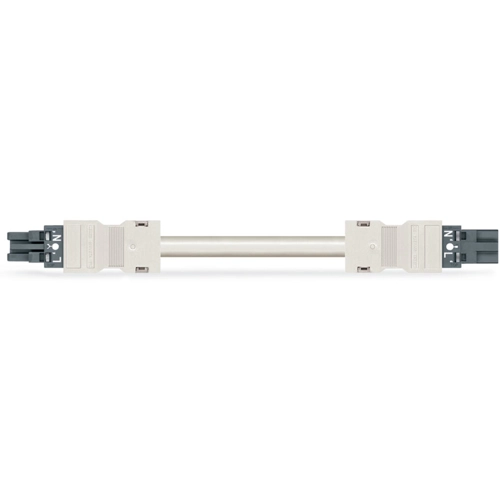

Connecting line, 3 m, socket, 2 pole straight to plug, 2 pole straight, 1.5 mm², 771-8982/016-304
Connecting line, 771-8982/016-304, WAGO
The WINSTA MIDI Connecting line allows you to establish connections according to many different requirements in no time flat. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector offers protection against contact with live components in accordance with protection type IP20. Thanks to the integrated test slot, it is possible to check connections even when they are plugged in. That saves time and reduces installation labor and costs.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- Simple circuits
- With L coding for supplying power in automation
- Ready for immediate use
- Quick replacement of defective units during ongoing operation
| Connection (1) | socket, 2 pole | |
| Connection (2) | plug, 2 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 3 m | |
| Coding | L | |
| Cable cross-section | 1.5 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
