771-8982/106-201 | WAGO

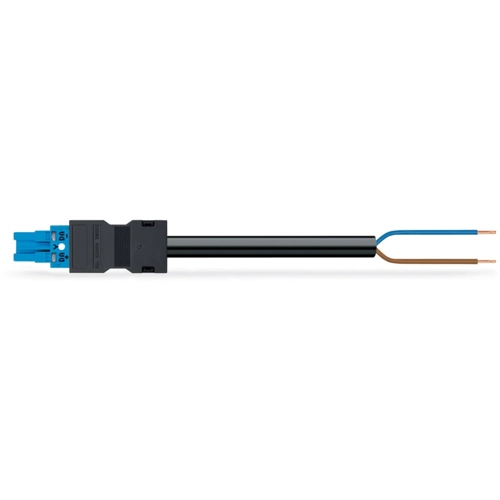

Connection line, 2 m, socket, 2 pole straight to open end, 1.5 mm², 771-8982/106-201
Unit Price (€ / pc.)
7.0091 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8982/106-201, WAGO
The WINSTA MIDI Connecting line I coding. This pluggable installation connector can be used when criteria repeat or is distributed on a specified pattern, for example for installing grid lighting or flush-mount lighting. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Enjoy the benefits of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Pluggable installation connector with protection against mismating
- For intelligent, easy lighting installation
- Ready to install and use immediately
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket, 2 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 2 m | |
| Coding | I | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
