771-8985/117-504 | WAGO

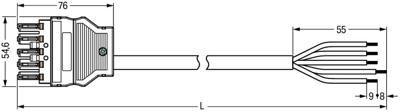

Connection cable, 5 m, socket, 5 pole straight to open end, 2.5 mm², 771-8985/117-504
Connecting line, 771-8985/117-504, WAGO
The WINSTA MIDI Connecting line with protection type IP20 supports rapid, correct installation. Our pluggable installation connector with spring pressure connection technology work entirely without screw connections. They allow fast, efficient, error-free installation in numerous applications. For greater security in electrical installations, the pluggable installation connector is equipped with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Effective protection against mismating
- For automation controllers
- With L coding for supplying power in automation
- Convenient installation and commissioning
| Anschluss (1) | Buchse, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 5 m | |
| Kodierung | L | |
| Leiterquerschnitt | 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
