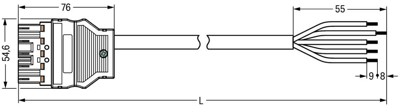

Connection cable, 3 m, plug, 5 pole straight to open end, 2.5 mm², 771-8985/207-304
Connecting line, 771-8985/207-304, WAGO
WINSTA MIDI Connecting line L coding. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. This pluggable installation connector can be employed for a load of up to 20 A. Therefore, it can also be used for high power loads. Due to the built-in test slot, it is possible to check connections even when they are plugged in. This saves time, labor, and money.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Now you can also reduce installation expenses without compromising safety and quality: with protection against mismating reduces the need for servicing and prevents unnecessary downtime.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- With L coding for use in supplying power to power supply units or small servo motors
- Ready for immediate use
- Quick replacement of defective units during ongoing operation
| Anschluss (1) | Stecker, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 3 m | |
| Kodierung | L | |
| Leiterquerschnitt | 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
