771-8985/217-804 | WAGO

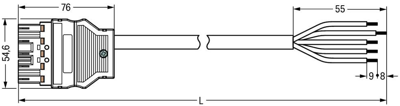

Connection cable, 8 m, plug, 5 pole straight to open end, 2.5 mm², 771-8985/217-804
Unit Price (€ / pc.)
51.0272 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8985/217-804, WAGO
This product has a current rating of 20 A - therefore it is also suitable for powerful loads. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Due to the integrated test slot, connections can be checked even when they are plugged in. This saves time, labor, and money.
WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Effective protection against mismating
- With L coding for supplying power in automation
- Flexible installation to save space
- Fast, secure installation
Technical specifications
| Anschluss (1) | Stecker, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 8 m | |
| Kodierung | L | |
| Leiterquerschnitt | 2,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
