771-8992/006-503 | WAGO

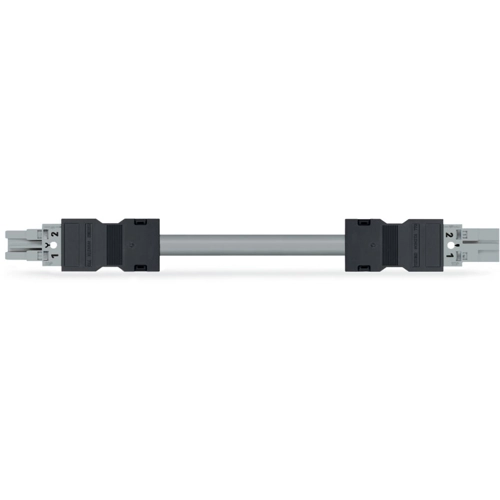

Connecting line, 5 m, socket, 2 pole straight to plug, 2 pole straight, 1.5 mm², 771-8992/006-503
Unit Price (€ / pc.)
12.5069 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8992/006-503, WAGO
WINSTA MIDI Connecting line rated current 16 A. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- For automation controllers
- Ready to install and use immediately
- Fast, secure installation
Technical specifications
| Connection (1) | socket, 2 pole | |
| Connection (2) | plug, 2 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 5 m | |
| Coding | B | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
