771-8995/008-201 | WAGO

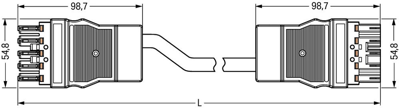

Connecting line, 2 m, socket, 5 pole straight to plug, 5 pole straight, 4.0 mm², 771-8995/008-201
Unit Price (€ / pc.)
36.1879 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Connecting line, 771-8995/008-201, WAGO
This WINSTA MIDI Connecting line can be used when criteria repeat or are distributed on a defined grid, for example for installing grid lighting or flush-mount lighting. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This product has a current rating of 25 A - therefore it is also suitable for powerful loads.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With A coding for use in a large number of general mains applications
- Ready to install and use immediately
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket, 5 pole | |
| Connection (2) | plug, 5 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 2 m | |
| Coding | A | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
