771-8995/008-801 | WAGO

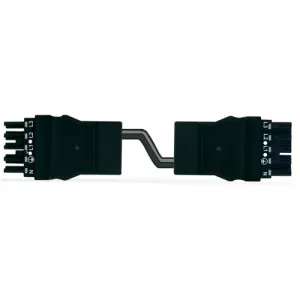

Connecting line, 8 m, socket, 5 pole straight to plug, 5 pole straight, 4.0 mm², 771-8995/008-801
Unit Price (€ / pc.)
65.4381 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Connecting line, 771-8995/008-801, WAGO
This WINSTA MIDI Connecting line allows you to establish connections according to an enormous variety of requirements in next to no time. The coding option reduces installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20. This product has a current rating of 25 A - as a result it is also suitable for high power loads.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs.
Features
- Pluggable installation connector with protection against mismating
- With A coding for use in many general mains applications
- Ready for immediate use
- Rapid, structured electrical installation
Technical specifications
| Connection (1) | socket, 5 pole | |
| Connection (2) | plug, 5 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 8 m | |
| Coding | A | |
| Cable cross-section | 4.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
