771-8995/018-601 | WAGO

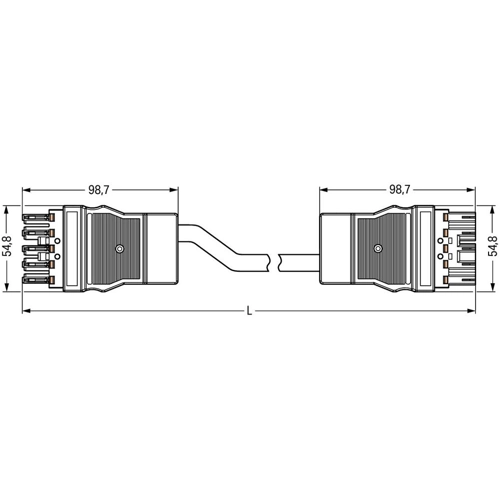

Connecting line, 6 m, socket, 5 pole straight to plug, 5 pole straight, 4.0 mm², 771-8995/018-601
Connecting line, 771-8995/018-601, WAGO
The WINSTA MIDI Connecting line with protection against mismating is the pluggable solution for your application in control cabinets, for lighting connections or on PCBs. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. This pluggable installation connector can be used for a current load of up to 25 A. As a result, it can also be used for high power loads. Through its Push-in Cage Clamp spring pressure connection technology, it ensures error-free, time-saving installation and offers flexibility for meeting an enormous variety of installation requirements.
The Connecting line is equipped with a socket and a plug. WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Protection against mismating eliminates errors
- For automation controllers
- With A coding for use in many general mains applications
- Ready to install and use immediately
| Connection (1) | socket, 5 pole | |
| Connection (2) | plug, 5 pole | |
| Version | connecting line | |
| Connection 1 design | straight | |
| Connection 2 design | straight | |
| Cable length | 6 m | |
| Coding | A | |
| Cable cross-section | 4.0 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
