771-8995/108-501 | WAGO
Connection line, 5 m, socket, 5 pole straight to open end, 4.0 mm², 771-8995/108-501
Connecting line, 771-8995/108-501, WAGO
The WINSTA MIDI Connecting line rated current 25 A. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to establish connections according to many different requirements in seconds. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.

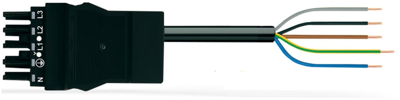

The Connecting line is provided with a socket and a free end. The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too!.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- With A coding for use in a large number of general mains applications
- Quick replacement of defective units during ongoing operation
| Connection (1) | socket, 5 pole | |
| Connection (2) | open end | |
| Version | connection line | |
| Connection 1 design | straight | |
| Cable length | 5 m | |
| Coding | A | |
| Cable cross-section | 4.0 mm² |
| Country of origin | DE |
| Customs tariff number | 85444290 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
