771-8995/118-801 | WAGO

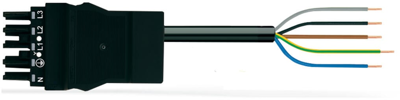

Connection cable, 8 m, socket, 5 pole straight to open end, 4.0 mm², 771-8995/118-801
Connecting line, 771-8995/118-801, WAGO
The WINSTA MIDI Connecting line rated current 25 A. This pluggable installation connector can be used when requirements repeat or is distributed on a specified pattern, for example for installing grid lighting or flush-mount lighting. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The Connecting line is provided with a socket and a free end. This WINSTA is the pluggable connection system that is ideally tailored to the strict requirements of electrical installation. It offers fast, secure and, above all, error-free installation of components and cables.
Features
- Effective protection against mismating
- Simple circuits
- With A coding for use in a large number of general mains applications
- Quick replacement of defective units during ongoing operation
| Anschluss (1) | Buchse, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 8 m | |
| Kodierung | A | |
| Leiterquerschnitt | 4,0 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
