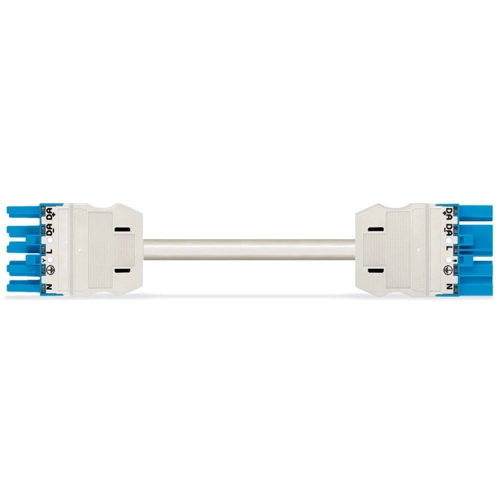

Connection cable, 1 m, socket, 5 pole straight to plug, 5 pole straight, 1.5 mm², 771-9285/016-102
Connecting line, 771-9285/016-102, WAGO
The WINSTA MIDI Connecting line I coding provides the foundation for installation of solid and fine-stranded conductors. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. With its Push-in Cage Clamp spring pressure connection technology, it guarantees error-free, time-saving installation and offers customization and flexibility for meeting an enormous variety of installation requirements.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This significantly reduces the need for servicing and lowers costs. Now you can also cut installation expenses without compromising safety and quality: with protection type IP20 eliminates the need for servicing and prevents unnecessary downtime.
Features
- Protection against mismating eliminates errors
- For automation controllers
- With I coding for use in building automation (lighting control)
- Convenient installation and commissioning
| Anschluss (1) | Buchse, 5-polig | |
| Anschluss (2) | Stecker, 5-polig | |
| Ausführung | Verbindungsleitung | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 1 m | |
| Kodierung | I | |
| Leiterquerschnitt | 1,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
