771-9293/117-801 | WAGO

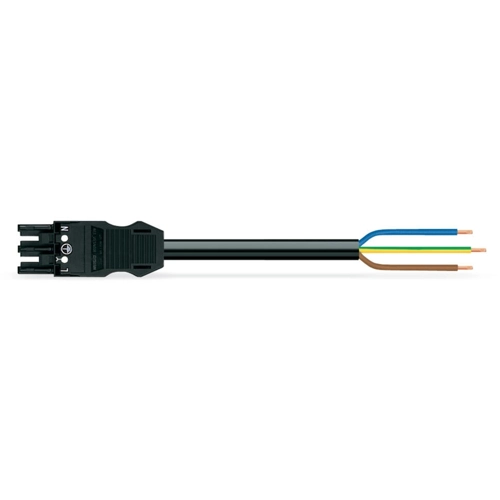

Connection line, 8 m, socket, 3 pole straight to open end, 2.5 mm², 771-9293/117-801
Connecting line, 771-9293/117-801, WAGO
The WINSTA MIDI Connecting line with protection against mismating provides the foundation for installation of solid and fine-stranded conductors. On PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to establish connections according to many different requirements in next to no time. The color coding and mechanical coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20.
The cable is pre-assembled with a socket and a free end. WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables.
Features
- Pluggable installation connector with protection against mismating
- For automation controllers
- For any mains application
- Ready for immediate use
- Rapid, structured electrical installation
| Anschluss (1) | Buchse, 3-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 8 m | |
| Kodierung | A | |
| Leiterquerschnitt | 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
