771-9294/015-205 | WAGO

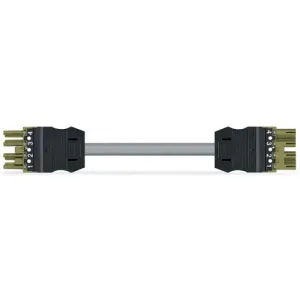

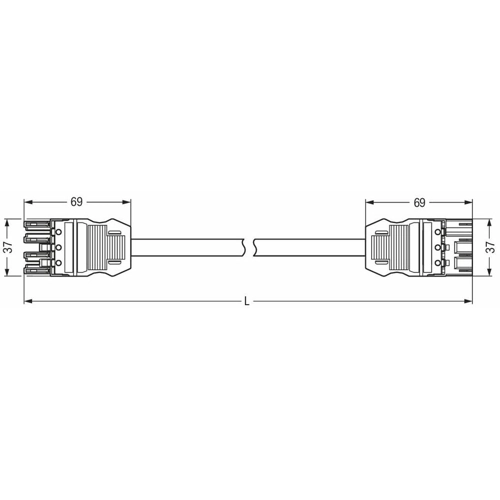

Connection cable, 2 m, socket, 4 pole straight to plug, 4 pole straight, 1.0 mm², 771-9294/015-205
Connecting line, 771-9294/015-205, WAGO
The WINSTA MIDI Connecting line rated current 10 A supports fast, reliable installation. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. With its Push-in Cage Clamp spring pressure connection technology, it guarantees error-free, time-saving installation and offers customization for meeting various installation requirements.
The WINSTA Pluggable Connection System is perfectly tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and therefore faster, more reliable, and error-free. Use of this pre-assembled system decreases time spent on assembly and installation errors at the construction site. Now you can also reduce installation expenses without compromising quality and safety: with fire class B2 reduces the need for servicing and prevents unnecessary downtime.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With B coding for use in process automation, such as lighting technology
- Ready to install and use immediately
- Rapid, structured electrical installation
| Anschluss (1) | Buchse, 4-polig | |
| Anschluss (2) | Stecker, 4-polig | |
| Ausführung | Verbindungsleitung | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 2 m | |
| Kodierung | B | |
| Leiterquerschnitt | 1,0 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
