771-9294/015-505 | WAGO

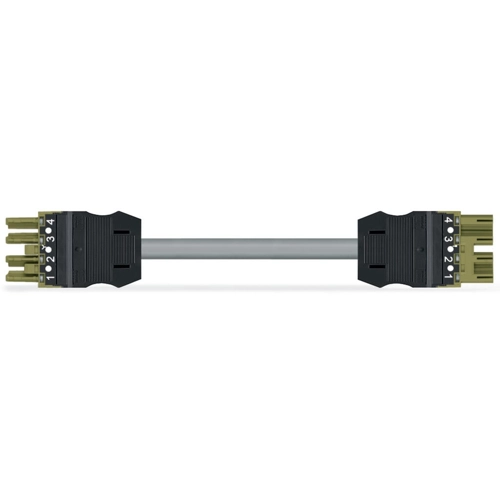

Connection cable, 5 m, socket, 4 pole straight to plug, 4 pole straight, 1.0 mm², 771-9294/015-505
Connecting line, 771-9294/015-505, WAGO
The WINSTA MIDI Connecting line rated current 10 A is the pluggable solution for your use in control cabinets, on PCBs or for lighting connections. The mechanical coding and color coding of the pluggable installation connector ensure error-free installation of the individual components - including protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20. Due to the included test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and costs.
WINSTA is the pluggable connection system that is perfectly tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Now you can also reduce installation costs without compromising safety and quality: with protection against mismating reduces the need for servicing and prevents unnecessary downtime.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- For automation controllers
- Convenient installation and commissioning
| Anschluss (1) | Buchse, 4-polig | |
| Anschluss (2) | Stecker, 4-polig | |
| Ausführung | Verbindungsleitung | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 5 m | |
| Kodierung | B | |
| Leiterquerschnitt | 1,0 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
