771-9294/016-502 | WAGO

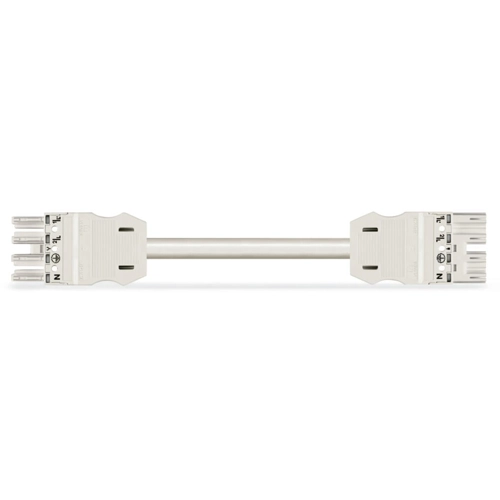

Connection cable, 5 m, socket, 4 pole straight to plug, 4 pole straight, 1.5 mm², 771-9294/016-502
Unit Price (€ / pc.)
50.8011 € *
Available: 0 pcs.
Leadtime: On Request **
Connecting line, 771-9294/016-502, WAGO
Connecting line WINSTA MIDI 4-pole. The coding option reduces installation errors, allowing fast, secure wiring of all components. The pluggable installation connector offers touch-proof protection with live components in accordance with protection type IP20. Thanks to the included test slot, connections can be checked even when they are plugged in. That saves time and reduces installation labor and costs.
WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Pluggable installation connector with protection against mismating
- With A coding for a great number of uses
- Ready to install and use immediately
- Quick replacement of defective units during ongoing operation
Technical specifications
| Anschluss (1) | Buchse, 4-polig | |
| Anschluss (2) | Stecker, 4-polig | |
| Ausführung | Verbindungsleitung | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 5 m | |
| Kodierung | A | |
| Leiterquerschnitt | 1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
