771-9294/016-702 | WAGO

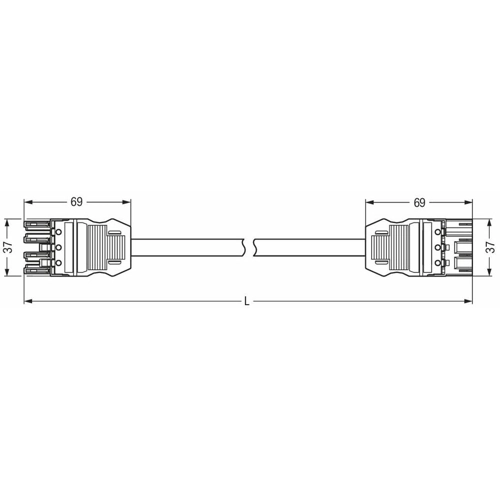

Connection cable, 7 m, socket, 4 pole straight to plug, 4 pole straight, 1.5 mm², 771-9294/016-702
Unit Price (€ / pc.)
62.8915 € *
Available: 0 pcs.
Leadtime: On Request **
Connecting line, 771-9294/016-702, WAGO
The WINSTA MIDI Connecting line supports rapid, correct installation. For greater security in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20. Due to the included test slot, connections can be checked even when they are plugged in. This saves time, labor, and money.
The WINSTA Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing.
Features
- Effective protection against mismating
- Simple circuits
- With A coding for a large number of applications
- Ready for immediate use
- Convenient installation and commissioning
Technical specifications
| Anschluss (1) | Buchse, 4-polig | |
| Anschluss (2) | Stecker, 4-polig | |
| Ausführung | Verbindungsleitung | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 7 m | |
| Kodierung | A | |
| Leiterquerschnitt | 1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
