771-9385/066-501 | WAGO

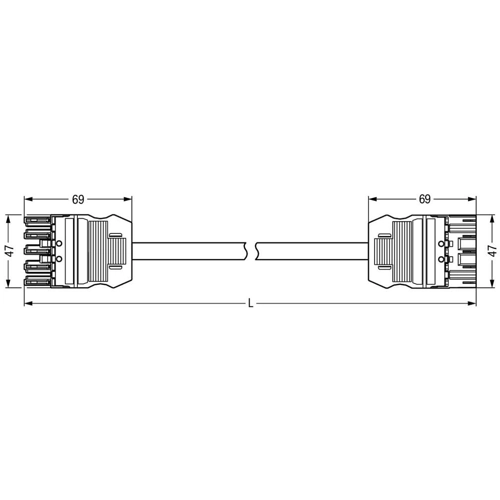

Connection cable, 5 m, socket, 5 pole straight to plug, 5 pole straight, 1.5 mm², 771-9385/066-501
Unit Price (€ / pc.)
49.8848 € *
Available: 0 pcs.
Leadtime: On Request **
Connecting line, 771-9385/066-501, WAGO
WINSTA MIDI Connecting line for power and signal transmission. For greater protection in electrical installations, the pluggable installation connector is provided with mechanical protection against mismating. The pluggable installation connector is protected in accordance with protection type IP20.
WINSTA is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably.
Features
- Pluggable installation connector with protection against mismating
- Simple circuits
- For lighting management
- Ready for immediate use
- Convenient installation and commissioning
Technical specifications
| Anschluss (1) | Buchse, 5-polig | |
| Anschluss (2) | Stecker, 5-polig | |
| Ausführung | Verbindungsleitung | |
| Bauform Anschluss 1 | gerade | |
| Bauform Anschluss 2 | gerade | |
| Kabellänge | 5 m | |
| Kodierung | I | |
| Leiterquerschnitt | 1,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
