771-9395/267-401 | WAGO

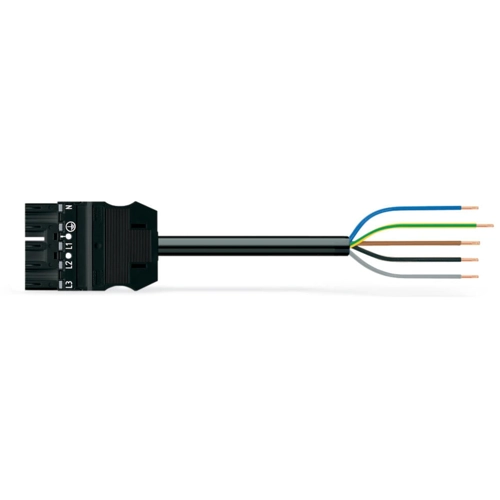

Connection line, 4 m, plug, 5 pole straight to open end, 2.5 mm², 771-9395/267-401
Connecting line, 771-9395/267-401, WAGO
The WINSTA MIDI Connecting line with protection type IP20. Whether on PCBs, in control cabinets or for connecting lights - pluggable installation connector allows you to establish connections according to many different requirements in no time flat. The coding options reduce installation errors, allowing fast, secure wiring of all components. The pluggable installation connector is protected in accordance with protection type IP20.
The Connecting line is provided with a plug and a free end. The WINSTA Pluggable Connection System is ideally tailored to the very strict requirements of building installation. It makes electrical installation pluggable, and thus more efficient, even more reliable, and error-free. Use of this pre-assembled system decreases assembly times and errors during installation at the construction site.
Features
- Protection against mismating eliminates errors
- Simple circuits
- With A coding for use in a large number of general mains applications
- Ready for immediate use
- Fast, secure installation
| Anschluss (1) | Stecker, 5-polig | |
| Anschluss (2) | offenes Ende | |
| Ausführung | Anschlussleitung | |
| Bauform Anschluss 1 | gerade | |
| Kabellänge | 4 m | |
| Kodierung | A | |
| Leiterquerschnitt | 2,5 mm² |
| Ursprungsland | DE |
| Zolltarifnummer | 85444290 |
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
